Vortech 2016-2020 Ford 5.2L Shelby GT350 Tuner Kits

Tuner Kit Availability

• Tuner Kits are available for 2016-2017 GT350, and GT350 Track Pack models.
• Vortech‰۪s Ford 5.2L Shelby GT350 Supercharger Systems are available as a Tuner Kit (2016-2017) for custom installations for all applications, being stock, modified vehicles, or higher horsepower applications.

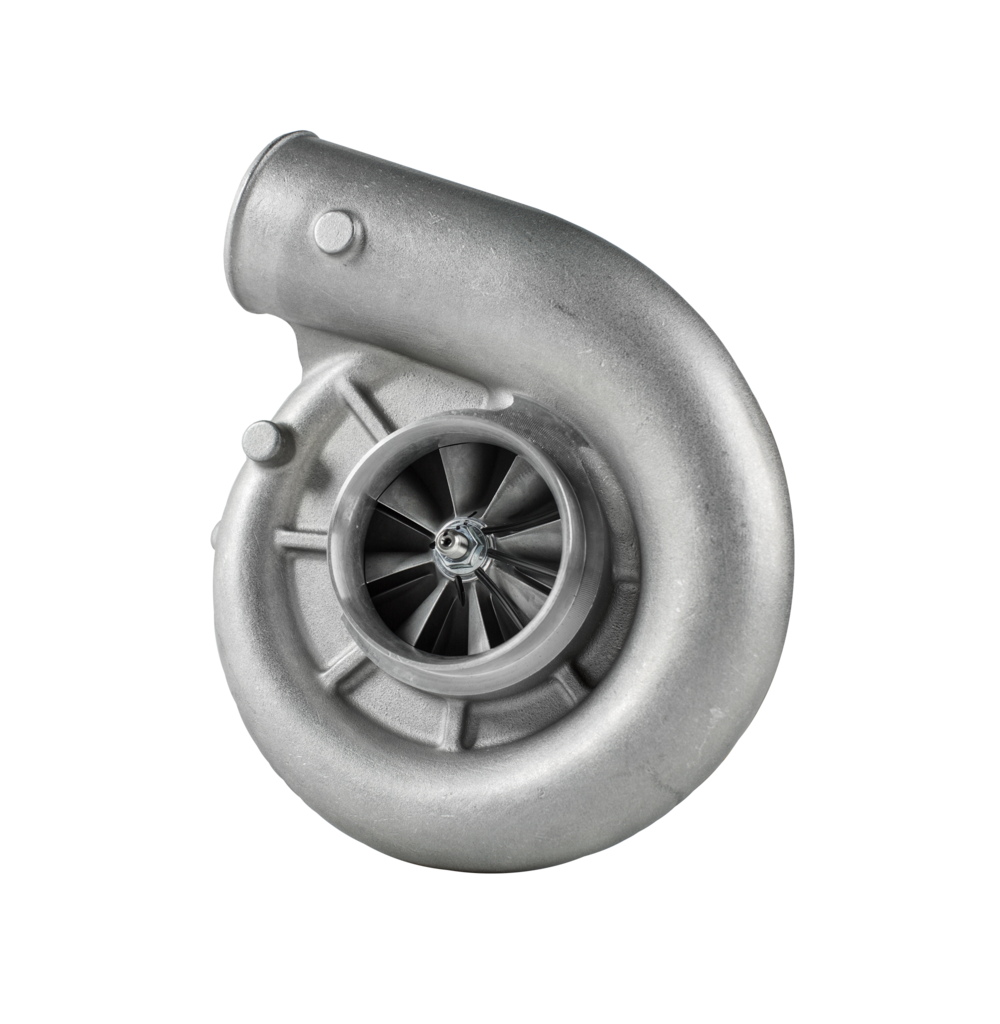

• The GT350 systems utilize Vortech‰۪s V-3 SCi-Trim supercharger. Continued development in Vortech‰۪s Lab resulted in the V-3 SCi. The ‰۪i‰۪ stands for improved and with its new patented oil control system and state of the art centrifugal compressor stage this V-3 SCi-Trim literally blows away the competition. Industry leading 75% adiabatic efficiency [SAE J1723 standard] means less heat is being generated, drive power is reduced and more net power is produced. Less heat also means better durability.

Superior Technology

• Centrifugal superchargers easily make more pressure and flow than a roots type blower and are much more efficient. Read our Roots vs Centrifugal comparison to see the numbers.
• Vortech supercharger systems are a great value. Dollar for dollar, Vortech systems deliver more horsepower than virtually any other method of upgrade. Also, driven normally, gas mileage often increases rather than decreases.

Supercharger Kit Finishes

• Multiple kit finishes available. For that fully integrated look, 5.0 Mustang systems are available in factory matching black finish. Satin and Polished units are also available.

Included Components and Features

• ‰ÛÒ V-3 SCi-Trim compressor with 3.80‰Û? drive pulley
• ‰ÛÒ Manifold boost pressure: 6.0-6.5 psig @ redline on stock engine
• Air inlet assembly includes:
• ‰ÛÒ High-flow carbon fiber inlet duct. Mates to OEM airbox
• ‰ÛÒ OEM replacement K&N panel filter
• ‰ÛÒ OEM 5.0L GT airbox base and lid
• ‰ÛÒ Silicone sleeves and reducers
• ‰ÛÒ Stainless steel clamps
• ‰ÛÒ PCV and breather hose provisions
• Replacement engine coolant pipe and hose assemblies
• Engine coolant reservoir replacement assembly
• Dual plate supercharger mounting system includes:
• ‰ÛÒ Idler Pulleys, drive belt and all hardware.
• ‰ÛÒ Mount features multiple position idler location for a wide range of belt and pulley fits.
• Discharge components include:
• ‰ÛÒ High flow air/air charge cooler. 24‰Û? x 13‰Û? x 3.5‰Û? cooler core.
• ‰ÛÒ Mandrel bent 3‰Û? and 3.5‰Û? aluminum charge tubes for high flow and minimal weight
• ‰ÛÒ Silicone Sleeves & Stainless steel clamps
• ‰ÛÒ 98mm MAF housing configured for ‰۪blow-through‰۪ use.
• ‰ÛÒ Integrated air-straightener upstream of the MAF housing.
• ‰ÛÒ Vortech Maxflow Race Bypass Valve with filter

Installation

• Installation time is rated at 8-10 hours.

CARB Compliance

• Tuner Kits are NOT CARB legal, and are legal in California only for racing vehicles which may never be used, or registered or licensed for use, upon a highway (off-road use only). The manufacture, sale, offer for sale, or installation of this product may also be illegal under the federal clean air act (42 U.S.C. å¤ 7522(A)(3)).

Tuner Kits, Upgrades, More HP (PLEASE CONTACT US FOR UPGRADE OPTIONS BEFORE PURCHASE)

• For higher-horsepower, custom-tuned installations we recommend a tuner kit, which does not include a fuel pump, fuel injectors or ECU programmer. This requires you or your installer to provide custom calibration and the required fuel components.
• The V-3 SCi-Trim supercharger included with the tuner kit is capable of up to 775HP on modified vehicles. Tuner kits are also available with the 950 HP capable V-2 Ti-Trim supercharger for high-performance racing vehicles.
• Call for more information.
